DIY Leveling rake

Mowers, blowers & other important tools of the trade
Topic Author
Gilley11
Posts: 1288
Joined: Sun Nov 03, 2019 11:31 am
Location: Charlotte, NC
Grass Type: Zoysia
Lawn Size: 2k zoy, 1.5k rye
Mower: California Trimmer 20"

DIY Leveling rake

Post by Gilley11 »

Start with one of these. They're only $40-$50 new and you can find them on CL or FB for $20-$30. This is almost EXACTLY like one of the leveling rakes, just with legs and more cross pieces.



Drill out rivets, remove the legs and take out every other cross piece, or however you want to set it up.







Assemble and you'll come up with something like this:



Here's the finished product. I used an extra push broom that I had and some angle brackets to attach it. Just messing around with it, if works great! I'm in this for a total of $0.00, but if you had to buy things and depending on your creativity, you could get it done for less than $40 no problem.

Last edited by Gilley11 on Mon Jan 20, 2020 7:58 am, edited 1 time in total.

User avatar
Ware
Site Admin
Posts: 11399
Joined: Fri Jan 27, 2017 10:56 pm
Location: Alma, Arkansas
Grass Type: Bermuda
Lawn Size: 3.5 acres
Mower: JD Z994R (72”)
Contact:

Re: DIY Leveling rake

Post by Ware »

Nice write-up! Thanks! :thumbup:

tommyboy
Posts: 81
Joined: Mon Aug 19, 2019 11:32 pm
Location: Southcentral Wisconsin
Grass Type: Scotts sun and shade mix
Lawn Size: 16k
Mower: Deere X350 Honda HRX217HYA

Re: DIY Leveling rake

Post by tommyboy »

Nice. May have to try this myself. Any chance of getting more detailed photos of the handle bracket?

Topic Author
Gilley11
Posts: 1288
Joined: Sun Nov 03, 2019 11:31 am
Location: Charlotte, NC
Grass Type: Zoysia
Lawn Size: 2k zoy, 1.5k rye
Mower: California Trimmer 20"

Re: DIY Leveling rake

Post by Gilley11 »

tommyboy wrote:
Mon Jan 20, 2020 10:01 pm
Nice. May have to try this myself. Any chance of getting more detailed photos of the handle bracket?
I'll try to get a couple close ups tonight. It's really simple, just a couple of L brackets and bolts.

Topic Author
Gilley11
Posts: 1288
Joined: Sun Nov 03, 2019 11:31 am
Location: Charlotte, NC
Grass Type: Zoysia
Lawn Size: 2k zoy, 1.5k rye
Mower: California Trimmer 20"

Re: DIY Leveling rake

Post by Gilley11 »

Here's a zoon in of the original image:



I originally had it fabbed up with an aluminum setup, but I personally liked the added weight of the steel.
Last edited by Gilley11 on Tue Jan 21, 2020 6:51 am, edited 1 time in total.

Jsnow385
Posts: 28
Joined: Fri Sep 20, 2019 1:06 pm
Location: centerton A
Grass Type: Hybrid Bermuda
Lawn Size: 13000
Mower: Swardman

Re: DIY Leveling rake

Post by Jsnow385 »

That is amazing I know what I am doing this weekend. Thanks for the write up.

User avatar
Teej
Posts: 127
Joined: Wed Feb 27, 2019 5:04 pm
Location: SoCal
Grass Type: Common Bermuda
Lawn Size: 3000 sq. ft.
Mower: California Trimmer

Re: DIY Leveling rake

Post by Teej »

Bookmarked for a few months from now. Thanks for this!

Chris1
Posts: 223
Joined: Tue Apr 21, 2020 9:57 pm
Location: NW Illinois
Grass Type: Bluenote Midngt KBG/back NmIX
Lawn Size: 6k sq ft
Mower: Toro TM JD220

Re: DIY Leveling rake

Post by Chris1 »

genius

Mister Bill
TLF Supporter
Posts: 386
Joined: Fri Apr 12, 2019 10:22 am
Location: Georgia, USA
Grass Type: Bermuda 419
Lawn Size: 1,000 sq. ft.
Mower: Tru-Cut P20

Re: DIY Leveling rake

Post by Mister Bill »

For those of you who live in Menards country and can utilize the in-store rebate, $17.78.

https://www.menards.com/main/paint/ladd ... 770164.htm

Topic Author
Gilley11
Posts: 1288
Joined: Sun Nov 03, 2019 11:31 am
Location: Charlotte, NC
Grass Type: Zoysia
Lawn Size: 2k zoy, 1.5k rye
Mower: California Trimmer 20"

Re: DIY Leveling rake

Post by Gilley11 »

^^^^ That's a great price!

Topic Author
Gilley11
Posts: 1288
Joined: Sun Nov 03, 2019 11:31 am
Location: Charlotte, NC
Grass Type: Zoysia
Lawn Size: 2k zoy, 1.5k rye
Mower: California Trimmer 20"

Re: DIY Leveling rake

Post by Gilley11 »

There's another thread going around with guys making them from wood. You might be able to use the push broom bracket from that on this as well.

jeff2002
Posts: 27
Joined: Mon Apr 27, 2020 5:24 pm
Location: Northern IL
Grass Type: Weeds, Little Fescue
Lawn Size: 80,000 SQ FT
Mower: Ferris IS 2100Z

Re: DIY Leveling rake

Post by jeff2002 »

This looks awesome and I am going to try to build one myself. Originally, I was going to buy either a 36" or 48" from R&R products.

TNTurf
Posts: 398
Joined: Wed Mar 20, 2019 6:57 am
Location: Zone 7
Grass Type: Bermuda
Lawn Size: 15k
Mower: Toro Flex 21, Honda HRC216

Re: DIY Leveling rake

Post by TNTurf »

Yea when I first looked I was wondering why not buy the 48 from R&R, thats what I did and it works great. Well, I guess I forgot what I paid because looking just now this is a smoking deal for a tool that will work just as well. Good deal you got there.

JasonRMorrow
Posts: 33
Joined: Mon Sep 10, 2018 8:16 pm
Location: Calgary
Grass Type: KBG
Lawn Size: 1700
Mower: HRR216P/Mclane 20" 7 Blade

Re: DIY Leveling rake

Post by JasonRMorrow »

Thanks for the idea, I've had a step up in the rafters for years. Mine doesn't have as many slats so I can't remove them. I'll cut out the tread if I need to, so far it has worked great with some top soil spot tests.

This was $0 for me. Thatch rake handle will get swapped back and forth. The black angled pieces are cord channel that I use at work. Thrilled with how it turned out.



quackamole
Posts: 1
Joined: Mon May 04, 2020 1:33 pm
Location: Wisconsin
Grass Type: KBG
Lawn Size: 3000
Mower: craftsman self propelled

Re: DIY Leveling rake

Post by quackamole »

new user that found the site after looking for a leveling rake. Hi everyone!

I was able to score a 40" from menards, but trying to figure out how to attach a handle. Anyone know the name of the bracket that the official rakes use (attached to the post)? I can't come up with a name or description for the life of me.

I was thinking about using the snap on handles that dry dusters / mops use, but I'm not sure if it's a beefy enough solution.

https://www.homedepot.com/p/Rubbermaid- ... /100657971


gkaneko
Posts: 201
Joined: Tue Dec 11, 2018 2:58 pm
Location: Hawaii
Grass Type: Zoysia
Lawn Size: 4000 sqft
Mower: Mclane

Re: DIY Leveling rake

Post by gkaneko »

This is amazing. I wish I saw this before I bought the leveling rake.

User avatar
AZChemist
Posts: 284
Joined: Tue Nov 06, 2018 10:11 pm
Location: Gilbert, AZ
Grass Type: Tifgrand
Lawn Size: 8,400
Mower: Flex21/JD2653

Re: DIY Leveling rake

Post by AZChemist »

:evil:
quackamole wrote:
Mon May 04, 2020 2:17 pm
new user that found the site after looking for a leveling rake. Hi everyone!

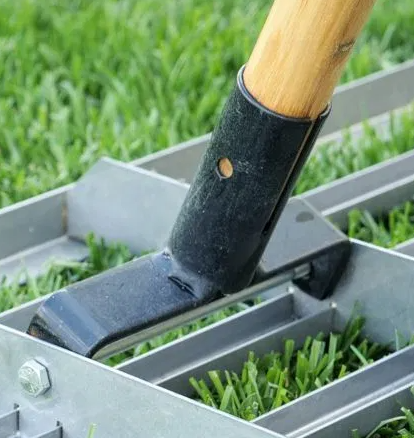

I was able to score a 40" from menards, but trying to figure out how to attach a handle. Anyone know the name of the bracket that the official rakes use (attached to the post)? I can't come up with a name or description for the life of me.

I was thinking about using the snap on handles that dry dusters / mops use, but I'm not sure if it's a beefy enough solution.

https://www.homedepot.com/p/Rubbermaid- ... /100657971

Also interested in the name of this bracket or what it was originally intended for if anyone know.

Thick n Dense
Posts: 627
Joined: Tue May 07, 2019 5:24 am
Location: Ann Arbor
Grass Type: Kentucky BG
Lawn Size: 8,000 sq ft
Mower: Toro TM

Re: DIY Leveling rake

Post by Thick n Dense »

slick !!!

Good job.

jhhoffma
Posts: 8
Joined: Sat Jun 06, 2020 6:03 am
Location: Grand Rapids, MI
Grass Type: KBG + northern blend
Lawn Size: 5000ft2
Mower: Toro recycler

Re: DIY Leveling rake

Post by jhhoffma »

JasonRMorrow wrote:
Fri May 01, 2020 3:29 pm
Thanks for the idea, I've had a step up in the rafters for years. Mine doesn't have as many slats so I can't remove them. I'll cut out the tread if I need to, so far it has worked great with some top soil spot tests.

This was $0 for me. Thatch rake handle will get swapped back and forth. The black angled pieces are cord channel that I use at work. Thrilled with how it turned out.


My HF had one that looked like this, so I didn't bother to pick it up as it didn't look like it would work as well. How did your's end up working for you?

Topic Author
Gilley11
Posts: 1288
Joined: Sun Nov 03, 2019 11:31 am
Location: Charlotte, NC
Grass Type: Zoysia
Lawn Size: 2k zoy, 1.5k rye
Mower: California Trimmer 20"

Re: DIY Leveling rake

Post by Gilley11 »

You've got to remove the cross pieces and fasten then back down. That one I would only put 2 back and it would work great.

I use mine so much more than I thought I ever would. It's an indispensable tool for me now.
