Chapin 2 Nozzle Boom Wand

Post by Brodgers88 » Sun Jun 04, 2017 12:45 pm

Ware asked me to share a little information ​regarding the 2 nozzle boom wand I'm using with my backpack sprayer. It is the chapin 2 nozzle poly boom. I bought it pre assembled for around $30. First off I love it and wouldn't do any broadcast spray applications without it! It sprays about a 40" swath which makes quick work of my 4,700 sq ft of turf. I use 21 psi cf valves and teejet extended range nozzles. The chapin nozzle caps work fine with these teejet nozzles. For foliar applications I use the xr teejet extended range flat fan 110 02 nozzle and for soil applications the xr extended range air induction flat fan 110 03 nozzle. I probably differ from others here but I use around the minimum amount of recommended carrier for my applications. For pgr/iron I'm spraying about 0.5gal/1000 and for pre-m/insecticide around 0.75gal/1000. Everything seems to work well for me at these carrier rates and it also allows for spraying the entire turf area with one mix per app.Image



User avatar
Ware
Site Admin
Posts: 7418
Joined: Fri Jan 27, 2017 10:56 pm
Location: Alma, Arkansas
Grass Type: Bermuda
Lawn Size: 7,500 sq ft
Mower: Toro GM1600
Contact:

Re: Chapin 2 Nozzle Boom Wand

Post by Ware » Sun Jun 04, 2017 1:05 pm

Great write-up! Thanks! :thumbup:

I understand and agree with your minimizing carrier logic. That's something stressed in the Rutgers Videos - with the right setup you can be very efficient with a backpack sprayer. Glad to hear it is working for you. I'm sure it really cuts down on the pumping too!

User avatar
wardconnor
Posts: 1612
Joined: Fri Mar 24, 2017 8:27 pm
Location: North Idaho
Grass Type: KBG PRG
Lawn Size: 20k
Mower: Toro Greensmaster 1000

Re: Chapin 2 Nozzle Boom Wand

Post by wardconnor » Sun Jun 04, 2017 1:39 pm

Where did you get the 2 nozzle wand or did you build it yourself?

User avatar
Ware
Site Admin
Posts: 7418
Joined: Fri Jan 27, 2017 10:56 pm
Location: Alma, Arkansas
Grass Type: Bermuda
Lawn Size: 7,500 sq ft
Mower: Toro GM1600
Contact:

Re: Chapin 2 Nozzle Boom Wand

Post by Ware » Sun Jun 04, 2017 2:05 pm

Looks like he used this one.

Brodgers88
Posts: 200
Joined: Sat Feb 25, 2017 8:31 pm
Location: Columbia, SC
Grass Type: Latitude 36 Bermuda
Lawn Size: 8,000
Mower: Toro GM1000

Re: Chapin 2 Nozzle Boom Wand

Post by Brodgers88 » Sun Jun 04, 2017 2:08 pm

No problem Ware! That Rutgers video is pretty awesome. I watched it several times a few years back when I was ready to get into broadcast spray applications.

Wardconnor, I bought mine from Amazon https://www.amazon.com/Chapin-6-7780-2- ... B006Y85G9M also available at domyownpestcontrol http://www.domyownpestcontrol.com/chapi ... 11499.html

Brodgers88
Posts: 200
Joined: Sat Feb 25, 2017 8:31 pm
Location: Columbia, SC
Grass Type: Latitude 36 Bermuda
Lawn Size: 8,000
Mower: Toro GM1000

Re: Chapin 2 Nozzle Boom Wand

Post by Brodgers88 » Sun Jun 04, 2017 2:08 pm

Ware wrote:
Sun Jun 04, 2017 2:05 pm
Looks like he used this one.
Beat me too it lol

Topcat
TLF Supporter
Posts: 477
Joined: Tue Mar 21, 2017 10:56 am
Location: Charleston, SC
Grass Type: Front - TifTuf/Back St Aug
Lawn Size: 1.5K Bermuda/3.5K SA
Mower: Swardman 2.0/Timemaster
Contact:

Re: Chapin 2 Nozzle Boom Wand

Post by Topcat » Sun Jun 04, 2017 5:21 pm

I was spraying just the other day and wished there was a multiple tipped wand to help speed the process.

Thanks!

User avatar
Lawndad
Posts: 134
Joined: Mon May 22, 2017 11:22 pm
Location: NJ
Grass Type: TTTF

Re: Chapin 2 Nozzle Boom Wand

Post by Lawndad » Mon Jun 26, 2017 9:53 pm

Hey sorry to wake a few week old thread but has anyone bought the boom wand for a Greenworks (Harbor Freight) 4gal. backpack sprayer? I called Chapin today and they said that their thread pattern is patented and HF is no help either. I haven't seen a universal boom wand yet. I'm just trying to cut down my spraying time with a bigger swath and you would think all these things would just screw on easily to any sprayer.

User avatar
Ware
Site Admin
Posts: 7418
Joined: Fri Jan 27, 2017 10:56 pm
Location: Alma, Arkansas
Grass Type: Bermuda
Lawn Size: 7,500 sq ft
Mower: Toro GM1600
Contact:

Re: Chapin 2 Nozzle Boom Wand

Post by Ware » Mon Jun 26, 2017 10:05 pm

Lawndad wrote:
Mon Jun 26, 2017 9:53 pm
Hey sorry to wake a few week old thread but has anyone bought the boom wand for a Greenworks (Harbor Freight) 4gal. backpack sprayer? I called Chapin today and they said that their thread pattern is patented and HF is no help either. I haven't seen a universal boom wand yet. I'm just trying to cut down my spraying time with a bigger swath and you would think all these things would just screw on easily to any sprayer.
No worries. That's why it's here!

I think they all use a proprietary thread pitch. Just a thought, you could buy a Chapin sprayer, swap the wands, put a Chapin multi-nozzle boom on the backpack, then use the 2gal tank w/HF wand for spot spraying. They also sell replacement wand parts, so you could build your own, but it looks like it may be just as cheap to buy a second sprayer.

User avatar
wardconnor
Posts: 1612
Joined: Fri Mar 24, 2017 8:27 pm
Location: North Idaho
Grass Type: KBG PRG
Lawn Size: 20k
Mower: Toro Greensmaster 1000

Re: Chapin 2 Nozzle Boom Wand

Post by wardconnor » Mon Jun 26, 2017 10:49 pm

Lawndad wrote:
Mon Jun 26, 2017 9:53 pm
Hey sorry to wake a few week old thread but has anyone bought the boom wand for a Greenworks (Harbor Freight) 4gal. backpack sprayer? I called Chapin today and they said that their thread pattern is patented and HF is no help either. I haven't seen a universal boom wand yet. I'm just trying to cut down my spraying time with a bigger swath and you would think all these things would just screw on easily to any sprayer.
I have a solo backpack sprayer hand pump.

I bought the Chapin cf valves red from Amazon. I bought the chapin 2 nozzle boom. The boom did not come with any adapters. The cf valves did however come with 2 adapters I threw the package away but on the back of the cf package it stated that it was compatible with all models with supplied adapters.

I didn't need the adapters for the cf valves because I bought the Chapin boom that went with the Chapin cf valves. Because I didn't need them for boom to valve I used the adapter to adapt from my crappy flimsy solo wand to the Chapin boom. It worked great.

I might work for you but its a gamble. The cf valve package said it was universally compatible.

I really need to get a dfw_pilot wand setup but am holding out because of funds. What I really need is a Mightyquinn Franken sprayer because of my large lawn setup. There is no shortage of ways to spend my money. In reality dfw_pilot would rather me save my cash for later years.

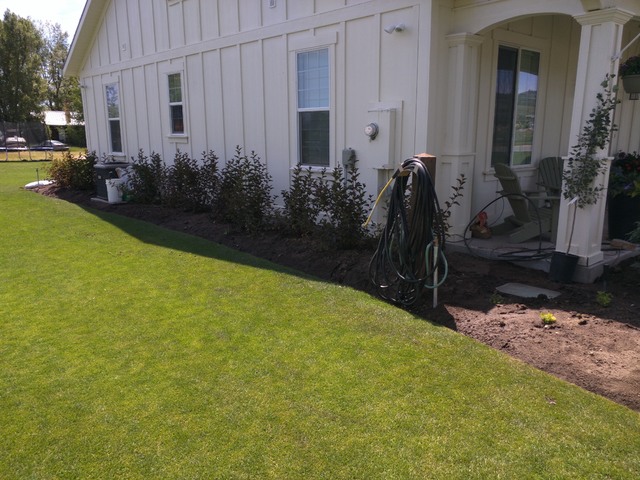

Oh wait.. There's more..... I also need another eley hose reel for this post and hose. Like I said... Everyone wants my money.

Last edited by wardconnor on Tue Jun 27, 2017 10:05 am, edited 1 time in total.

User avatar
Ware
Site Admin
Posts: 7418
Joined: Fri Jan 27, 2017 10:56 pm
Location: Alma, Arkansas
Grass Type: Bermuda
Lawn Size: 7,500 sq ft
Mower: Toro GM1600
Contact:

Re: Chapin 2 Nozzle Boom Wand

Post by Ware » Mon Jun 26, 2017 11:09 pm

I agree. That post is begging for an Eley.

User avatar
dfw_pilot
Site Admin
Posts: 2226
Joined: Sat Jan 28, 2017 3:19 pm
Location: DFW Metroplex
Grass Type: Bermuda
Lawn Size: 5,000 ft²
Mower: Toro GM1000
Contact:

Savings

Post by dfw_pilot » Tue Jun 27, 2017 10:00 am

wardconnor wrote:
Mon Jun 26, 2017 10:49 pm
There is no shortage of ways to spend my money. In reality dfw_pilot would rather me save my cash for later years.
lol, I like the way you think! I'm always happy to see guys buy quality stuff - it will last a while and cost less in the long run. However, you are wise to remember that this hobby can quickly get you to buy a lot more equipment and toys than first imagined. And it quickly adds up.
Ware wrote:
Mon Jun 26, 2017 11:09 pm
I agree. That post is begging for an Eley.
+1
The Bermuda Triangle | Sprayer Wand | Invest for Retirement | PWS
- A clear conscience is a great pillow -

User avatar
Lawndad
Posts: 134
Joined: Mon May 22, 2017 11:22 pm
Location: NJ
Grass Type: TTTF

Re: Chapin 2 Nozzle Boom Wand

Post by Lawndad » Tue Jun 27, 2017 9:13 pm

Thanks Ware and Wareconnor I appreciate the advice. :thumbup:

7474
Posts: 128
Joined: Mon Aug 20, 2018 5:14 pm
Location: Ohio
Grass Type: northern mix
Lawn Size: 20000
Mower: toro timecutter 42" ZTR

Re: Chapin 2 Nozzle Boom Wand

Post by 7474 » Mon Aug 20, 2018 11:24 pm

Long asleep thread......

Any reason you went with the 2 nozzle boom vs the 3 nozzle boom?

Thanks

Greendoc
TLF Supporter
Posts: 2099
Joined: Sat Mar 24, 2018 5:52 pm
Location: Hawaii
Grass Type: All warm season turf
Lawn Size: Acres
Mower: Toro GM 1000

Re: Chapin 2 Nozzle Boom Wand

Post by Greendoc » Wed Feb 20, 2019 1:54 pm

Pump capacity. More nozzles running, the more GPM the pump needs to flow at a given pressure. My current set up involves a 3 GPM pump capable of maintaining 500 PSI. I can run a 4 nozzle boom on it and maintain 40 PSI at the nozzles.

User avatar
985arrowhead
Posts: 269
Joined: Sun Jul 15, 2018 9:34 am
Location: S. Louisiana
Grass Type: TifF 419
Lawn Size: 4500
Mower: John Deere 180C

Re: Chapin 2 Nozzle Boom Wand

Post by 985arrowhead » Sat May 11, 2019 10:06 am

So I have a Chapin 24 volt battery back pack sprayer and it claims to spray at 35-40 psi and the pump is rated at .4-.5 gpm

I ordered the 2 boom sprayer with teejet XR11002vs (yellow) nozzles so at .02gpm@40psi I would be right at 0.4gpm@40psi which is what I am getting now with my XR11004vs (red) nozzle.

I will just need to recalibrate my 1000sqft mix rate for carriers?

Thanks in advance for any advice.
Last edited by 985arrowhead on Sat May 18, 2019 12:30 am, edited 1 time in total.

User avatar
985arrowhead
Posts: 269
Joined: Sun Jul 15, 2018 9:34 am
Location: S. Louisiana
Grass Type: TifF 419
Lawn Size: 4500
Mower: John Deere 180C

Re: Chapin 2 Nozzle Boom Wand

Post by 985arrowhead » Sat May 18, 2019 12:31 am

Brodgers88 wrote:
Sun Jun 04, 2017 12:45 pm
Ware asked me to share a little information ​regarding the 2 nozzle boom wand I'm using with my backpack sprayer. It is the chapin 2 nozzle poly boom. I bought it pre assembled for around $30. First off I love it and wouldn't do any broadcast spray applications without it! It sprays about a 40" swath which makes quick work of my 4,700 sq ft of turf. I use 21 psi cf valves and teejet extended range nozzles. The chapin nozzle caps work fine with these teejet nozzles. For foliar applications I use the xr teejet extended range flat fan 110 02 nozzle and for soil applications the xr extended range air induction flat fan 110 03 nozzle. I probably differ from others here but I use around the minimum amount of recommended carrier for my applications. For pgr/iron I'm spraying about 0.5gal/1000 and for pre-m/insecticide around 0.75gal/1000. Everything seems to work well for me at these carrier rates and it also allows for spraying the entire turf area with one mix per app.Image


Will the boom attach to a teejet wand? I builf a DFW wand....

User avatar
985arrowhead
Posts: 269
Joined: Sun Jul 15, 2018 9:34 am
Location: S. Louisiana
Grass Type: TifF 419
Lawn Size: 4500
Mower: John Deere 180C

Re: Chapin 2 Nozzle Boom Wand

Post by 985arrowhead » Thu May 23, 2019 5:05 pm

Almost there!

Waiting on my teejet 3/8 to 11/16 adapter to attach this to my DFW wand!



ThomasPI
TLF Supporter
Posts: 318
Joined: Sat May 18, 2019 8:09 am
Location: Perdido Key Florida
Grass Type: El Toro Zoysia that’s the plan
Lawn Size: 8,000 sq ft
Mower: Baroness LM 66

Re: Chapin 2 Nozzle Boom Wand

Post by ThomasPI » Tue May 28, 2019 6:33 pm

Well done, a McGyver assembly !
